Category: CRL Vienna Series Glass-to-Glass Mount Hinges

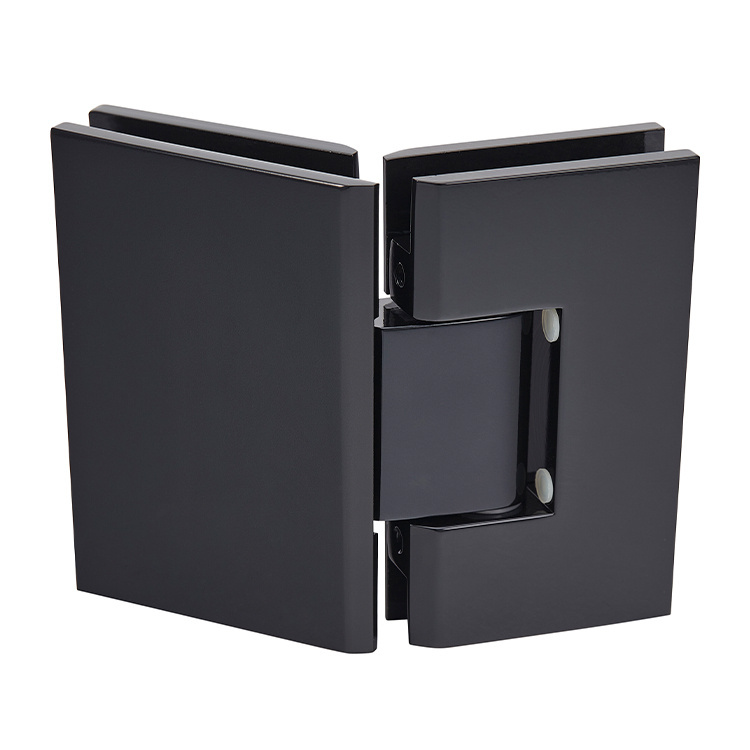

CRL Vienna 045 Series Black 135° Glass-to-Glass Hinge
SKU: V1E045BL
UPC:
$172.43
(20% off)
$143.69
Product Details:

Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
Available in Many Beautiful Finishes
135 Degree Glass-to-Glass
The CRL Vienna Series of professional
hinges is designed to accommodate 3/8 to 1/2 inch (10 to 12
millimeter) glass. Available in both Wall Mount and Glass-to-Glass
styles, it provides design flexibility. Vienna Series Hinges are
constructed of solid brass with all moving parts (pins and springs)
in stainless steel. Two strategically placed pins inside the hinge
provide template options, and satisfy two schools of thought for
mounting shower door hinges. This allows the Vienna Hinge to be
used with it's own CRL "mouse-ears" cut-out, or in some cases fit
competitive "mouse-ears" cut-outs. On the other hand, to enable
increased adjustability, the two pins can be removed. This allows
the Vienna Hinge to fit it's own CRL rectangular shape, square
cornered cut-out, or in some cases, fit competitive rectangular
shaped, square cornered cut-outs.
Color: Black
Minimum Order: 1 Each
Additional Product Information:
Using two hinges with 3/8 or 1/2 inch glass (10 or 12 millimeters)
the hinge will hold up to 110 pounds (50 kilograms) with a maximum
width of 36 inches (914 millimeters).
Using three hinges with 3/8 or 1/2 inch glass (10 or 12
millimeters) the hinge will hold up to 140 pounds (50 kilograms)
with a maximum width of 36 inches (914 millimeters).
Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered
Safety Glass
Construction: Solid Brass
Fabrication Requirements: Optional Square or "Mouse Ears"
Cut-out
Includes: One Hinge, Gaskets, Screws and Template
