Category: CRL Vienna 037 Wall Mount Full Back Plate Hinge

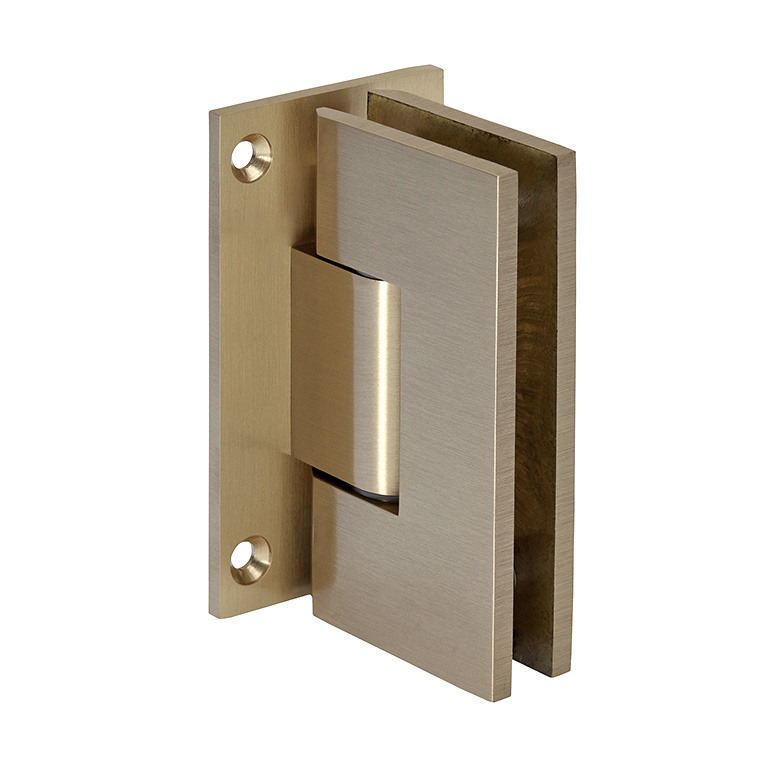

CRL Vienna 037 Series Brushed Bronze Wall Mount Shower Door Hinge
SKU: V1E037BBRZ
UPC:
$124.30
(20% off)
$103.58
Product Details:

Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
Available in Several Beautiful Finishes
Three Year Warranty
The CRL Vienna Series of professional hinges is
designed to accommodate 3/8 to 1/2 inch (10 to 12 millimeter)
glass. Available in both Wall Mount and Glass-to-Glass styles, it
provides design flexibility. Vienna Series Hinges are constructed
of solid brass with all moving parts (pins and springs) in
stainless steel. Two strategically placed pins inside the hinge
provide template options, and satisfy two schools of thought for
mounting shower door hinges. It allows the Vienna Hinge to be used
with it's own CRL "mouse-ears" cut-out, or in some cases
fit competitive "mouse-ear" cut-outs. On the other hand,
to enable increased adjustability, the two pins can be removed
which allows the Vienna Hinge to fit it's own CRL rectangular
shape, square cornered cut-out, or in some cases, fit competitive
rectangular shaped, square cornered cut-outs.
Color: Brushed Bronze
Minimum Order: 1 Each
Additional Product Information:
Using two hinges with 3/8 or 1/2 inch glass (10 or 12 millimeters)
the hinge will hold up to 110 pounds (50 kilograms) with a maximum
width of 36 inches (914 millimeters).
Using three hinges with 3/8 or 1/2 inch glass (10 or 12
millimeters) the hinge will hold up to 140 pounds (50 kilograms)
with a maximum width of 36 inches (914 millimeters).
Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered
Safety Glass
Construction: Solid Brass
Fabrication Requirements: Optional Square or "Mickey
Ears" Cut-out
Includes: One Hinge, Gaskets, Screws and Template
