Product Details:
Cuts Perfect V-Shaped Notches in Nozzles
Safest Way to Trim V-Notches
This CRL V-Notch Cutter is the
quickest and safest way to trim your nozzles. Cutting the proper
V-Notch on a urethane cartridge nozzle can be difficult and
dangerous if you do not use the proper tool. The CRL V-Notch Cutter
is a high quality tool that comes with tempered steel jaws, a
spring loaded handle with non-slip plastic grips, and a thumb
controlled jaw locking device.
Size of V-Notch: 7/16 x 3/4 in (11 x 19 mm)
Minimum Order: 1 Each

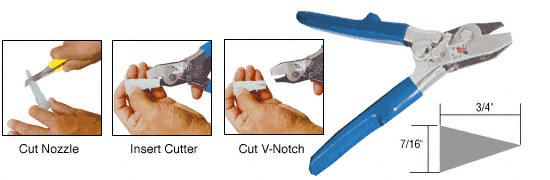

To use this tool, take a utility knife and cut the end of the
nozzle tip to give yourself a 1/4 inch (6.4 millimeter) or larger
bead. Next, insert the CRL V-Notch Cutter tool inside the nozzle.
Squeeze the handle and you have a perfect V-Notch. To correctly set
the height of your V-Notch, place the nozzle (with a pre-cut end)
on the pinchweld. Mark the height of the body panel on the nozzle
and trim to that height. This will prodvide you with the proper
height for compression of the urethane bead.
