Product Details:
- For Inset Glass-to-Glass Doors
- Gives Cabinets an "All-Glass" Look

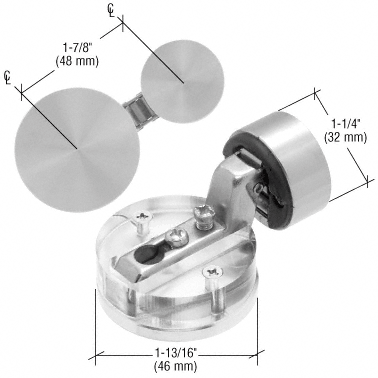

CRL's UV Round Glass-to-Glass Door Hinge is popular inthe furniture
industry due to its clean, efficient design and ease of assembly.
The door moves to the inside of the cabinet by 1-3/16 inch (30
millimeter) when opening. After installation, minor adjustments to
the door can be made by simply turning a screw. Maximum glass
thickness is 5/16 inch (8 millimeter), and maximum door weight
should not exceed 18 pounds (8 kilograms) using two Hinges. Minimum
order is one each.
