Product Details:

Provides Fixed Panel Support for Enclosures Not Reaching the Ceiling
No Hole Drilling Required

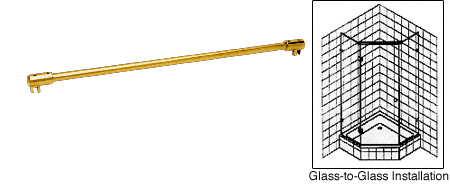

The CRL Fixed Panel Support Bar will stabilize fixed panels of glass in enclosures that do not go all the way up to the ceiling. The Wall-To-Glass Bar has a bell-shaped clamping device on the wall side, and a solid brass end cap with a swiveling U-shaped receptacle to secure the fixed panel. The Glass-To-Glass Bar has a solid brass end cap with a swiveling U-shaped receptacle on both sides to secure each fixed panel. Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. No holes or cut-outs required. Stock Bars are 39 inches (975 millimeters) in length. Simply cut to size required.

Color: Ultra Brass
Length: 39 in (975 mm)
Diameter: 3/4 in (10 mm)

Minimum Order: 1 Each

Additional Product Information:
Specifications:
Material: 3/4 inch (19 millimeter) Diameter Tubular Brass Bar, Solid Brass End Caps
Glass Thickness Range: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered Safety Glass
Bar Length: 39 inches (975 millimeters)
Includes: All Required Mounting Hardware
