Product Details:

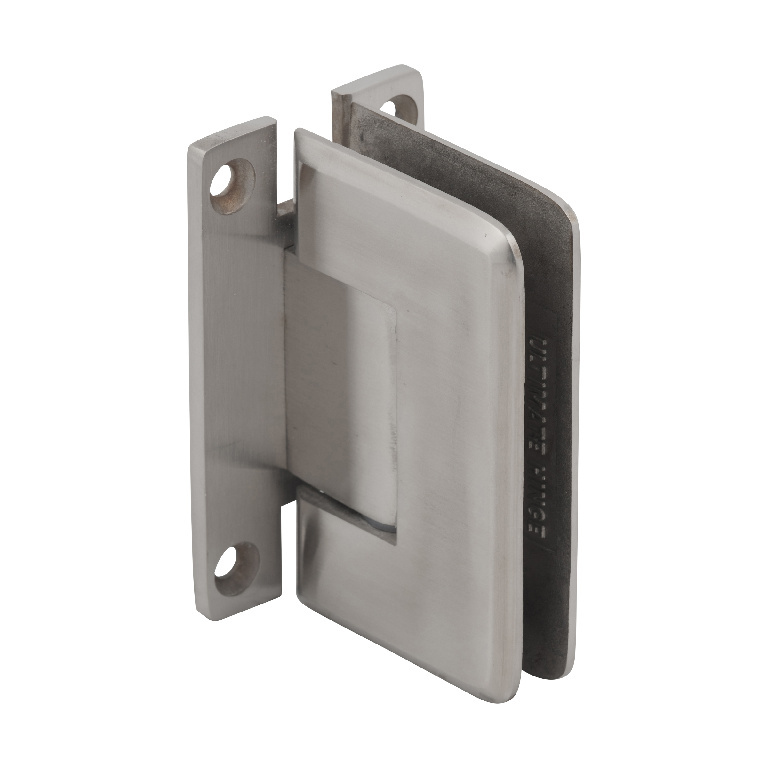

The CRL Ultimate Series of professional hinges is able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. A variety of two styles, Wall Mount and Glass-to-Glass types, gives design flexibility. The Ulimate Series Hinge is named primarily for its combination of design elegance and service life. Featuring the same beautiful rounded corners and beveled edges of the Pinnacle Hinge, the Ulimate Hinge is constructed entirely of stainless steel. This all-stainless construction gives the Ultimate Hinge a durability not usually found in brass hinges. The Ulimate has superior survivability in conditions of accelerated corrosion, such as seaside communities with high atmospheric salt levels. The Ultimate Hinge has stainless steel plunger tips, pins and springs to endure long service life and reliable door closure. It also has the same Reversible 5° Pivot Pin featured in our Geneva, Cathedral, Pinnacle and Elite Series.

Color: Satin Stainless Steel

Minimum Order: 1 Each

Additional Product Information:
Standard Reversible Pivot Pin: Each Ultimate Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90º. The opposite side is marked 85º. Standard Ulimate Hinges come with the 90º side activated.

Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered Safety Glass
Special Feature: Stainless steel construction provides greater durability in conditions subject to accelerated corrosion, such as seaside communities with high atmospheric salt levels
Construction: Stainless Steel
Hinge Swings: 90º in and 90º out
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
