Product Details:
- Identifies Glass That has Been
Heat-Strengthened
- Test Single or Multiple Panes From a Single
Side
- Identify Thickness of First Glass Pane
|

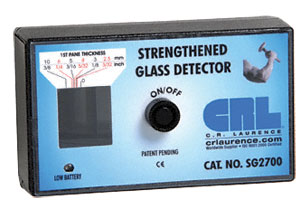

The CRL Tempered and Strengthened Glass
Detector will allow users to confirm if glass has
been heat strengthened or tempered. The detector can test single
panes of glass or multiple panes in a window at a single time, and
from a single side. The glass can be tested in the factory, or it
can be tested after being installed in the field. This portable,
battery-powered unit is convenient and simple to use. Simply slide
the meter across the glass and conveniently watch the reflections
from the glass head on. As the meter crosses stress lines in the
glass (caused by the tempering process), the resulting surface
reflections from our wide array of light sources will change color.
The special optics of the SG2700 provide a robust change in color,
and is great for applications where the stress lines are more
difficult to view. As a bonus, the SG2700 detector can even
identify the thickness of the first piece of glass in the window.
Operates on one 9 VDC battery (included).
Features
• Single or double pane testing accomplished from a single side
• Test single panes of glass or double pane windows in the
production environment
• Test single or double pane windows that are already installed in
the field
• Wide viewing area illuminated by multiple light sources
• Pane 1 glass thickness measurement
• Head-on viewing of reflections for easy measurement
• Special viewing optics to accentuate the color changes
• Identify the location of stress lines in the glass
• Automatic power-off feature to prolong the life of the
battery
• Low power usage allows for standard 9-volt alkaline battery
operation
• Low Battery Indicator
• Simple operation
• Convenient push-on/push-off power switch with improved
button-guard design
• Small, portable convenient size
• Protective carrying case
