Product Details:
- Two Track Styles; Standard – for Almost Any
Installation; and Flanged – for Drop Ceiling Installations; Track
is Pre-Drilled for 3/8" (10 mm) Fasteners at 24" (610 mm)
Center-to-Center Spacing
- Available in Mill Aluminum or White Powder Paint
Finishes (Cladding on Special Order)
- Two Stock Lengths 120" (3.05 m) and 240"
6.10 m), Plus 6" (152.4 mm) Splices for Roller Access; Fabricated
Corners and Intersections
|

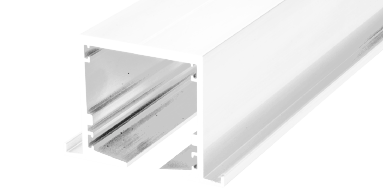

CRL SPS Flanged Overhead Track Splice
is 6063-T6 Alloy Aluminum, and is designed to allow for Wheel
access if service is required. The Splice will accommodate the
heavier loads required in stacking system installations. Each
Splice is provided with four each 12" (305 mm) sliding keys to aid
in aligning and securing the splice in place, and to allow for
future roller removal if necessary. Splices should be located in
front of the first parking intersection.
- Length: 6 in. (152.4 mm)*
- Color: White
