Product Details:

Top and Bottom Mount Design Allows More Glass Exposure
Available in Several Beautiful Finishes
Use Monolithic Tempered Glass

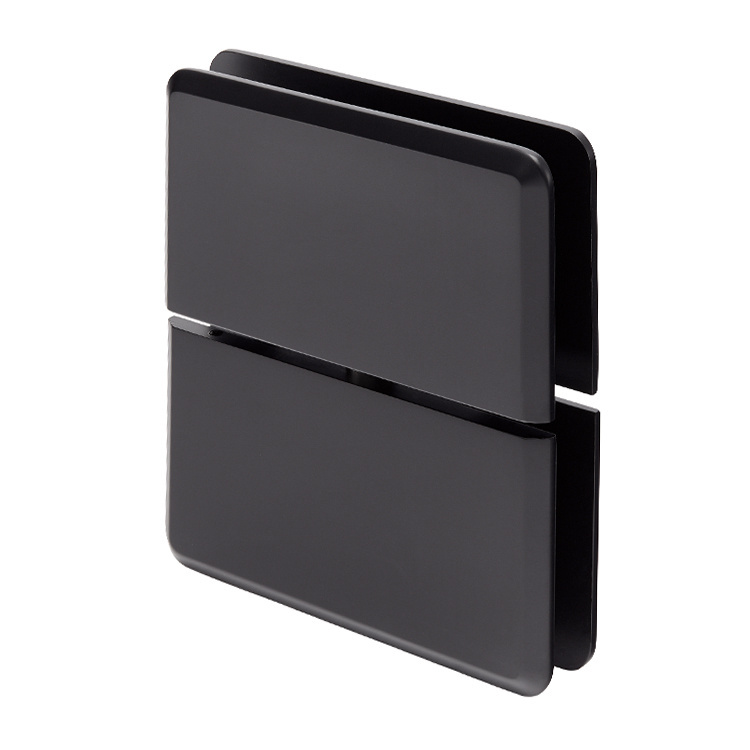

The CRL Senior Prima Series of professional hinges is able to accommodate 1/2 inch (12 millimeter) thick tempered safety glass. A variety of two styles, Top and Bottom Mount and Glass-to-Glass types, gives design flexibility. Advantages of the Senior and Junior Prima Hinges include the fact that they carry the majority of the weight on the bottom and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Glass Top Pivot Hinge is used for doors having fixed transoms. Placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength.

Color: Oil Rub Bronze

For Use With: 1/2 in (12 mm) Glass
Maximum Weight: 145 lbs (66 kg)
Maximum Width: 36 in (914 mm)

Minimum Order: 1 Each

Specifications:
Glass Thickness: 1/2 inch (12 millimeter) Tempered Safety Glass
Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared against use of side mount glass-to-glass hinges requiring more cut-outs
Construction: Solid Brass
Hinge Swings: Full rotation
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
