Product Details:
Passive Infrared Request-to-Exit Device
Designed to Release Magnetic Locks When Doors are Approached
Dual 12 or 24 VDC, UL Listed
The CRL Securitron® Exit Motion Sensor is
specifically designed to reliably release Magnetic Locks. A person
approaching the door is 'seen' by the motion detector just before
reaching the door. The XMS1224 automatically cuts power to the
lock, allowing the individual to exit.

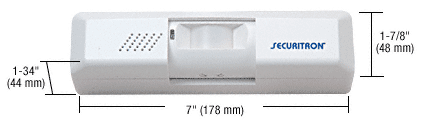

Length: 7 in (178 mm)
Height: 1-3/4 in (44 mm)
Depth: 1-7/8 in (48 mm)
Minimum Order: 1 Each
Additional Product Information:
Specifications
Input Voltage: 12/24 VDC (Automatic Selection)
Power Draw: 20-50mA, depending on switching status.
Environment: For Indoor Use Only
