Product Details:
Regulated and Filtered
Three Models Available
Field Selectable Output 12 or 24 VDC. 1 Amp Maximum
Built-In Charging Circuit for Optional Standby Battery

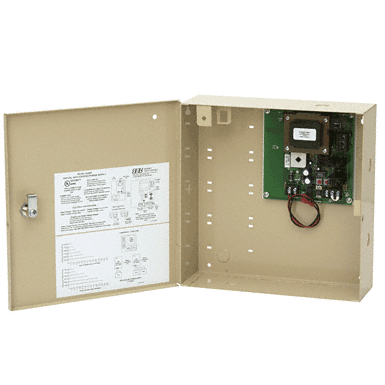

These CRL SDC Power Supplies are designed to make it easy and cost
effective to power electrical locking systems. They provide
regulated, filtered, low voltage DC power to interface with locking
devices, station controls, and consoles. Emergency Interface Relay
(EIR) Modules provide interface with approved fire or other
emergency systems. Output voltage at 12 or 24 Volts DC is field
selectable. Built-in battery charging systems allow a constant
charge of optional standby battery backups. Tan baked enamel, NEMA
Grade 1 approved enclosures all have conduit knockouts and key lock
hinged covers.
Enclosure Size: 11-1/2" x 11-1/2" x 3-1/2" (292 x
292 x 89 mm)
SPECIFICATIONS:
Input Voltage: 120V AC 60hz
Output Voltage: 2V DC or 24V DC
Output Current: 1 Amp Max
Battery Charger Output: 500mA @ 13.5 or 27VDC
