Product Details:

Adjustable to Any Angle Up to 90 Degrees without Removing Door
Available in Many Beautiful Finishes
Use Monolithic Tempered Glass

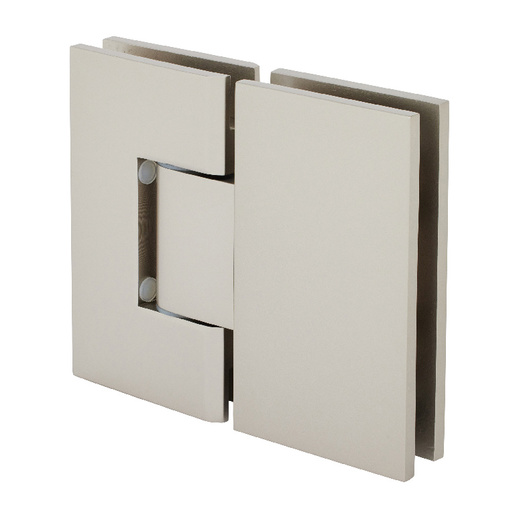

The CRL Adjustable Vienna Series has taken our popular Vienna Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degrees) is done after the door is hung. Simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closed position. The door can swing 90 degrees inward and 90 degrees outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degrees inside the shower area, thus having the door close snugly against the jamb.

Color: Satin Nickel

Minimum Order: 1 Each

Additional Product Information:
Using two hinges with 3/8 or 1/2 inch glass (10 or 12 millimeters) the hinge will hold up to 110 pounds (50 kilograms) with a maximum width of 36 inches (914 millimeters).
Using three hinges with 3/8 or 1/2 inch glass (10 or 12 millimeters) the hinge will hold up to 140 pounds (50 kilograms) with a maximum width of 36 inches (914 millimeters).

Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered Safety Glass
Construction: Solid Brass
Fabrication Requirements: Optional Square or "Mouse Ears" Cut-out
Includes: One Hinge, Gaskets, Screws and Template
