Product Details:

For 1/4" to 5/16" (6 to 8 mm) Thick Glass
No Holes or Cut-Outs Required
Three Finishes

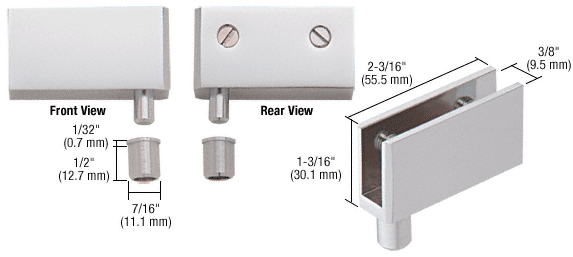

Installs in seconds, CRL's Wide Glass Door Pivot Hinges are similar to Cat. No. EH224 and Cat. No. EH226 but will accommodate larger and heavier doors. Simply tighten two set screws to secure to glass from 1/4" to 5/16" (6 to 8 mm) thick. The maximum recommended door width is 20" (508 mm).
Maximum weight should not exceed 28 lbs. (12.7 kg). Minimum clearance required is 5/16" (7.9 mm) top and 5/16" (7.9 mm) bottom.

Color: Satin Chrome

Minimum Order: 1 Package

One set top and bottom per pack.
