Category: CRL Cap Assemblies for 1-1/4" Standoffs
CRL Satin Chrome Standoff Cap Assemblies for 1-1/4" Standoff Bases
SKU: CAP114SC
UPC:
Product Details:
Choice of Several Matching
Finishes
CRL 1-1/4 Inch Standoff Cap
Assemblies are used in conjunction with the CRL 1-1/4 Inch Standoff
Bases to create displays, furniture or signage. Available in
brushed stainless and polished stainless finishes, they can be used
indoors or outdoors.
Glass fabrication requires 5/8 inch (15.8
millimeter) diameter hole for installation.
There is also a CRL Flush Cap Assembly in
the brushed stainless finish.
Color: Satin
Chrome
Diameter:
1-1/4 in (19 mm)
Allen Screw Length: 1 in (25.4 mm)
Thread
Size: 5/16
in - 18
Additional Product
Information:

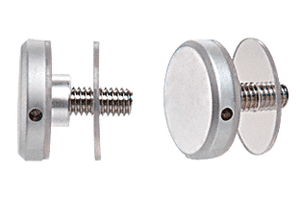

Cap Assemblies consist of: one Cap, Allen
Screw and two Clear Vinyl Washers.
For installation, the recommended method to
tighted the Cap is to insert a 5/64 inch (1.984 millimeter) hex key
or drill into the hole located in the side of the Cap.
Important Note:
Due to the diversified variety of
applications, weight limitations for Standoff Systems are dependent
upon wall or substrate anchoring.
