Product Details:

For 5/16" to 1/2" (8 to 12 mm) Thick Glass
Solid Brass

CRL Traditional Style 180 Degree Glass-to-Glass Single Stud Clamps have gradually rounded corners, and are ideal for inline panel installations. An additional set of gaskets is required for 5/16 inch (8 millimeter) glass. Panels can be notched to fit around the screw stud.

Color:   Satin Brass

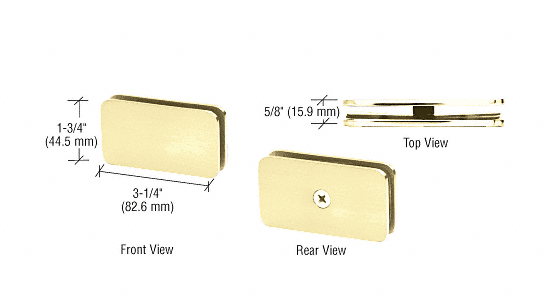

Width:  3-1/4 in (82.6 mm)
Height: 1-3/4 in (44.5 mm)

Minimum Order: 1 Each

SPECIFICATIONS
Material: Solid Brass
Glass Thickness Range: 5/16 to 1/2 Inch (8 to 12 millimeter)
Fabrication Required: Stud Will Fit Between Panels With .394 Inch (9.9 millimeter) Gap, or you can Notch the Glass for a Tighter Gap
Includes: Gaskets

Note: An Additional Set of Gaskets is Required for 5/16 Inch (8 millimeter) Glass
