Product Details:

For 5/16" to 1/2" (8 to 12 mm) Thick Glass
Solid Brass

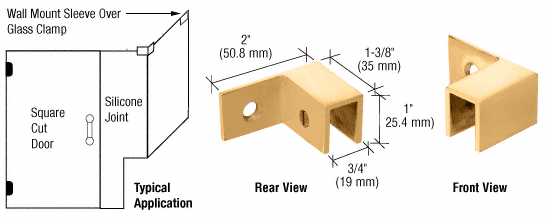

CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the silicone applied in the joint cures. Available in left and right handed models as viewed from the front side.

Color: Satin Brass
Mounting Plate Width: 2 in (50.8 mm)
Width: 1-3/8 in (35 mm)
Height: 1 in (25.4 mm)

Minimum Order: 1 Each

Additional Product Information:
SPECIFICATIONS:
Glass Thickness: 5/16 to 1/2 inch (8 to 12 millimeter) Tempered Safety Glass
Construction: Solid Brass
No Fabrication Required: (Clamps tighten using nylon tipped Allen screws)
Includes: Gaskets

Important Note:
These Clamps are not designed to take the place of Headers or a Support Bar.
