Product Details:

For 5/16 to 1/2" (8 to 12 mm) Glass
Solid Brass

CRL Oversized Fixed Panel U-Clamp performs the same function as our Traditional Clamps. They are expecially recommended for 1/2 inch (12 millimeter) thick glass installations where a hole drilling measurement of 1-1/2 inches times the glass thickness is required by the Temperer (from the edge of the glass to the closest edge of the hole).

Color:  Satin Brass

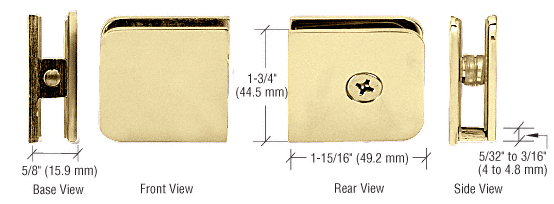

Width: 1-3/4 in (44.5 mm)
Height: 1-15/16 in (49.2 mm)


Minimum Order: 1 Each

Additional Product Information:
Note: The stud that goes through the hole made in the glass is positioned further from the edge of the glass than that of the Standard U-Clamp. This makes the Oversized U-Clamp the preferred clamp of most Temperers for 1/2 in (12 millimeter) thick glass.

Specifications:
Material: Solid Brass
Glass Thickness Range: 5/16 to 1/2 Inch (8 to 12 millimeter)
Hole Diameter Required: 5/8 to 3/4 Inch (15.9 to 19.1 millimeter)
Includes: Mounting Screw and Gaskets
Note: An Additional Set of Gaskets is Required for 5/16 Inch (8 millimeter) Glass
