Category: CRL Hole in Glass Style Beveled Wall Mount Clamp

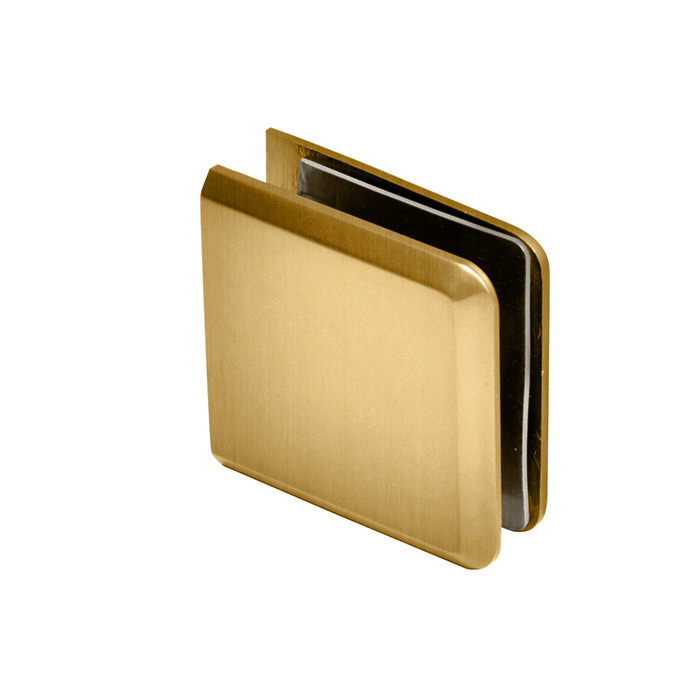

CRL Satin Brass Beveled Hole-in-Glass Style Wall Mount Heavy-Duty Glass Clamp
SKU: BCU4SB
UPC:
Product Details:
Available in Several Beautiful Finishes
For 3/8" to 1/2" (10 to 12 mm) Glass
CRL
Beveled Style Hole-in-Glass Clamps add an
elegant style to any project by allowing you to create a
"frameless look". The clamp offers smooth beveled edges
tapering inwards to the glass panel. One mounting screw per clamp
is included. They mount directly to the wall, ceiling or floor to
secure vertical fixed glass panels. Clearance between the glass and
wall is 3/16 inch (5 millimeter). Clear silicone can be used to
seal the gap and provide a clean, water-tight appearance.
Color: Satin Brass
Width : 2 in. (51 mm)
Height: 2 in. (51 mm)
Minimum Order: 1 Each
Forged Extra Thick Beveled Style Glass Clamps for 3/8 to 1/2
inch (10 to 12 millimeter) Thick Glass
Specifications
Material: Forged Solid
Brass
Glass Thickness Range: 3/8 to 1/2 inch (10 to 12 millimeter)
Fabrication Required: BGCU1 Requires Notch; BCU4, BGC180, BGC135,
BGC90, and BGC186 Require 3/4 inch (19 millimeter)
Holes; BGC188 Requires a 3/4 inch (19 millimeter) Hole in the Fixed
Panel and a Notch in the Transom
Includes: Mounting Screws (for Wall Clamps) and Gaskets
