CRL Satin Brass Custom Cladding Tapered Base Shoe for 1/2" Glass With 12" Center-To-Center Holes
Category: Just Arrived!
CRL Satin Brass Custom Cladding Tapered Base Shoe for 1/2" Glass With 12" Center-To-Center Holes
SKU: B5TDSBC
UPC:
Product Details:
- Typically Used as the Base Channel for Glass Railing Systems
Requiring a Flush Installation Embedded in Concrete

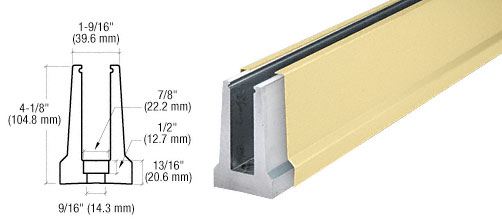

The CRL B5T Tapered Base Shoe is
typically used as the base channel for glass railing systems. It
can be clad in several choices of architectural finishes. The most
critical component in a railing system is the proper attachment of
the Base Shoe to the substrate. CRL has engineered and tested a
variety of attachment methods, and has developed an acceptable
combination of drilling patterns and fasteners. A printed brochure
with Instructions, Installation Hints, Cleaning, and Refinishing
techniques is available.
NOTE: 120 inch (3.05 meter) and 240 inch (6.10 meter) Extrusion
Only without(holes) cannot be used for the Dry Glaze System unless
the Base Shoe is fabricated to the above tested and approved hole
and counter bore pattern. The Dry Glaze System requires that the
attachment holes be counter bored so that no part of the fastener
protrudes above the base of the channel opening.
