CRL Satin Brass Custom Cladding Square Base Shoe for 1/2" Glass
Category: Just Arrived!
CRL Satin Brass Custom Cladding Square Base Shoe for 1/2" Glass
SKU: B5SSBC
UPC:
Product Details:
- Typically Used as the Base Channel for Glass Railing Systems or
Windscreens

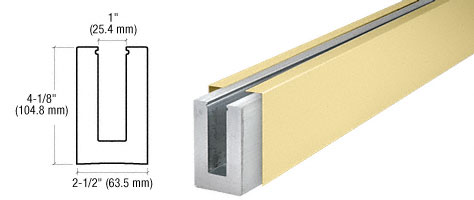

This CRL B5S Series Standard Square Base
Shoe is used as the base channel for glass railing
systems. It can be clad in several choices of architectural
finishes. The most critical component in a railing system is the
proper attachment of the Base Shoe to the substrate. CRL has
engineered and tested a variety of attachment methods, and has
developed an acceptable combination of drilling patterns and
fasteners. A printed brochure with Instructions, Installation
Hints, Cleaning, and Refinishing techniques is available.
NOTE: 240 inch (6.10 meter) Extrusion Only (without holes) cannot
be used for the Dry Glaze System unless the Base Shoe is fabricated
to the above tested and approved hole and counter bore pattern. The
Dry Glaze System requires that the attachment holes be counter
bored so that no part of the fastener protrudes above the base of
the channel opening.
