Category: CRL 120" Combination Wide U-Channel and Narrow Header for 3/8" and 1/2" Glass
CRL Satin Anodized Wide U-Channel With Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 10 Ft Long
SKU: NH2SASL
UPC:
$269.22
(20% off)
$224.35
Product Details:
Matches Width of Door and Sidelite Rails and Accepts Roll-In
Gasket, Top Pivot Block and Flush Snap-In Insert
Available in Stock Lengths, Fabricated Headers, or Headers with
Side Pockets for "Lift and Drop" Panel Glazing
Special Sidelite Rail Adapter Allows for a Continuous Sight Line
Using the Sidelite Rail in Conjunction with the Narrow Header

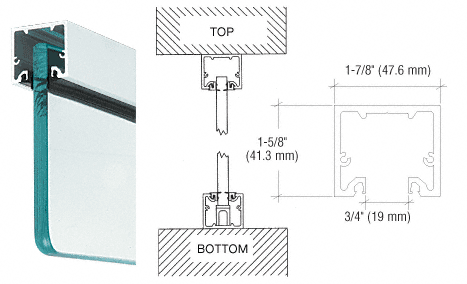

This CRL Wide "U" Channel and Narrow
Header was developed with three uses in mind: As a
"U" Channel that would be the same width as our Sidelite
and Door Rails; as a Narrow Header that is the same width as our
Sidelite and Door Rails, and will accept a top free-swinging pivot
to secure the top of the doors; as an Even Sight Line System,
accomplished by first securing the fabricated Narrow Header to the
top of the opening, then securing the Sidelite Rail to the Narrow
Header with the 1/4 inch (6.3 millimeter) header saddle. All
drilling, tapping and fabrication is done during the manufacturing
process to save time and prevent the need for field
fabrication.
Color: Satin Anodized
Length: 120 in (3.05 m)
Width: 2 in (51 mm)
Height: 1-11/16 in (43 mm)
Additional Product Information:
This product is manufactured as needed. Lead time of 1-2 weeks.
