CRL Satin Anodized Finish Self Closing Projected Bi-Fold Service Window
C.R. Laurence CRL Satin Anodized Finish Self Closing Projected Bi-Fold Service Window | SCBFW2A
Category: CRL Petite 180 Glass-to-Glass Hinge
CRL Satin Anodized Finish Self Closing Projected Bi-Fold Service Window
SKU: SCBFW2A
UPC:

$5,384.17 (20% off)

$4,486.81

Product Details:


Can not be shipped by UPS, FedEx - Common Carrier Only.
Call for shipping quote. 216-663-9830

Select From Manual, Semi-Automatic and Fully Automatic Operation
Low Voltage 24V DC System UL/CSA Approved Class Two Transformer

CRL Bi-Fold Service Windows are perfect anywhere a high quality bi-folding window is required.
Features include two panels that simultaneously open outward towards the customer and a burglar bar for extra security. Projected and Flush Mount models are available in three different configurations:
MANUAL - Both panels move simultaneously as either panel is manually operated.
SEMI-AUTOMATIC - Opening the window is achieved by pushing on the hip activated slide bar. Step away from the window and the two panels automatically close.
FULLY AUTOMATIC - Opening the window is as easy as stepping in front of the built-in infrared sensing device. Simply step away and the two panels automatically close.
The Automatic/Off/Manual Switch provides three different settings: AUTOMATIC operates with the infrared sensing device; MANUAL operates with a jamb mounted push button; OFF defeats all functions and closes the two panels. UL/CSA Approved Class 2 Transformer.

Color: Satin Anodized

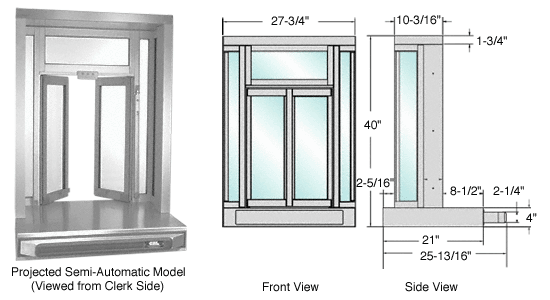

Overall Size:                 27-3/4 in (705 mm) Wide x 40 in (1016 mm) High
Service Opening Width: 15 in (381 mm)
Service Opening Height: 25 in (635 mm)

Specifications:
Materials: Aluminum Extrusion; Pile Weatherstrip; Glazing Vinyl; Stainless Steel Shelf or Stainless Steel Sill
Glazing: 1/4 inch (6 millimeter) Clear Tempered Glass
Stock Finishes: Satin Anodized or Duranodic Bronze
Bi-Fold Configuration: Fully Automatic; Self-Closing; Manual
To Determine Rough Opening: Add 1/2 Inch (12.7 millimeter) to Width, 1/4 Inch (6.4 millimeter) to Height

Estimated Lead Time: 15 WORKDAYS + SHIP
