Product Details:

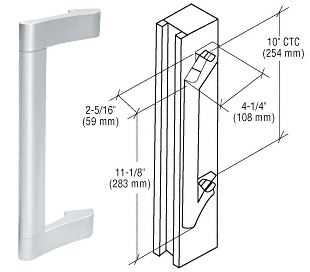

10" (254 mm) Center-to-Center
Concealed Fasteners

The CRL Extruded Aluminum Pull Handle comes with two studs that are tapped (1/4-20 thread) into the aluminum door frame on 10 inch (254 millimeter) centers. Then the handle is slipped over the studs and secured with Allen set screws to provide concealed fastener look. For wood or metal door mounting, an optional DL916 Backing Plate is available in matching Satin Anodized or Bronze Duranodic finishes.


Color: Satin Anodized

Center-to-Center: 10 in (254 mm)
Minimum Order: 1 Each
