Product Details:

Requires Cutting Instructions.
Call toll free for shipping quote. 216-663-9830

Made from the Highest Quality 6063 Alloy
Available in Several Finishes

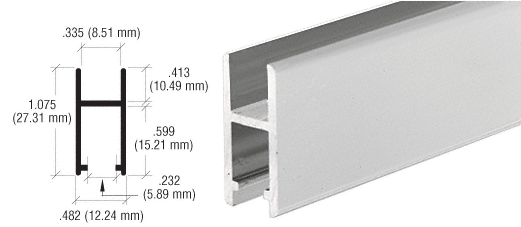

This CRL Aluminum H-Bar is used primarily for showcase sliding doors, and is designed for use with 3/16 inch (five millimeter) materials. 3/16 inch (five millimeter) glass doors require use of DV144 Vinyl for proper fit. Made from the highest quality, number 6063 alloy T-5 aluminum, our extrusions are uniformly anodized. Anodizing is the process of electronically adding a thicker coat of oxidizing to aluminum, which protects the metal from scratches, blemishes and atmosphere. You can use the DV147 Nylon Roller with the H-Bar.

Color:    Satin Anodized

Length:   12 ft (3.66 m)
Thickness:  .063 in (1.60 mm)

Minimum Order:   1 Stock Length ( 12 ft )
