Category: CRL 1/4" FHA Type "J" Channel
CRL Satin Anodized Aluminum FHA Type "J" Channel - 12 ft Long
SKU: D638A
UPC: 096523279528
Product Details:
Requires Cutting Instructions.
Call toll free for shipping quote. 216-663-9830

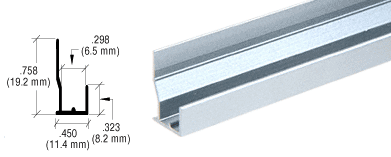

9/32" Channel Width
Meets FHA Specifications
This CRL FHA Type J-Channel holds the mirror an
1/8 inch (3 millimeters) from the wall and the raised rib at the
bottom of the channel prevents moisture from being trapped in the
channel. This extrusion design meets FHA specifications and
prevents damage to the silver mirror backing due to accumulation of
condensation. It can be used with the Cleat and Top Channel as the
third component of the CRL Mirror Mount System.
Color: Satin Anodized
Length: 12 ft (3.6 m)
Thickness : .039 in (1.00 mm)
Face: 5/16 in (7.9 mm)
Minimum Order: 1 Stock Lengths (12 ft)
Additional Product Information:
Hint: Closed ends can be created by trimming back a potion of the
channel, and bending back the front flaps to close off the
ends.
Note: Not recommended for schools, hospitals, or institutions where
mirror edges should be protected on all four sides (see D1950).
