Category: 4" Tapered Door Rails for 1/2" Glass without Lock - Custom Length
CRL Satin Anodized 4" Tapered Style Door Rail without Lock for 1/2" Glass - Custom Length
SKU: RHR4TSA12C
UPC:
Product Details:
- Exclusive CRL Wedge-Lock Dry Glazed Glass Securing
System for Rapid Installations and Steadfast Holding
Power
- Notching of Glass Not Required
Dry Glazing Allows Field Glass Replacement
- Doors Can Be Ready for Installation in Less Than 10
Minutes
|

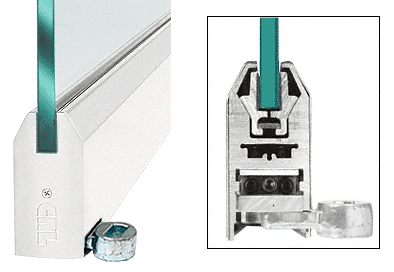

An innovative new glass entrance system, the CRL
Wedge-Lock Door Rail System features the exclusive
CRL Wedge-Lock Securing System (Patent Pending), a
totally new concept for securing the glass in the door rail. It
works by applying pressure from the bottom of the door rail, using
two glass retaining aluminum extrusions via a flat stainless steel
bar. As this bar is pulled down with socket head cap bolts,
pressure is applied to the glass retaining aluminum extrusions. The
bottom of the extrusions are at an angle and fit into an angled
groove in the door rail. As the glass retaining extrusions are
being pulled down, the angled wedge in the door rail also pulls the
glass retaining extrusions together. This action, along with our
specially designed door retaining gasket, creates a tremendous
amount of force (more than 900 pounds) in our nine inch (228.6
millimeter) Corner Rail. That's 100 pounds per
inch. Imagine how much force is created in our full length Door
Rails! The Wedge-Lock Glass Securing System gives
you more than a secure attachment to the glass. It provides the
fastest installation time of any door rail system offered to the
industry. Experienced installers can have a door prepared for
installation in less than ten minutes.
CRL Wedge-Lock Door Rails come completely
fabricated and ready to install right out of the carton with the
End Caps installed. After the rail is installed, the only thing
required before hanging the door is to attach the door arm or pivot
(not included) to the adjustable door alignment slide already
assembled in the Door Rail. The Adjustable Door Alignment
System feature allows you to adjust the door 1/8 inch (3.2
millimeter) toward or away from the jamb without removing the door.
This is standard on both top and bottom rails.
After the door is installed all you need do to adjust the door is
to remove the End Cap. This will reveal three
socket head cap bolts. The center bolt is the securing bolt used to
lock the adjustable slide in position. The two outer bolts are used
to adjust the slide 1/8 inch (3.2 millimeter) in or out. The low
profile of the adjustable slide allows the pivots with slotted
grooves to be moved to a position other than the American Standard
Setback of 2-3/4 inches (69.8 millimeter). This means we can
fabricate them for vertically out-of-square openings.
Other reasons to choose CRL Wedge-Lock Door Rail
System: Models are available to accept 3/8 or 1/2
inch (10 or 12 millimeter) glass; a rigid single component housing
that will not shift and fall out of adjustment over time because it
is not made up of two halves; the internal components do not
require removal before installation; the glass securing pads are
designed for longevity in extreme environments. Note: All
Wedge-Lock Door Rails feature the
built-in Jamb Alignment Block, but arms and pivots must be ordered
separately to meet job requirements.
CRL Wedge-Lock Door Rails come in five
standard finishes, and can be quoted in custom finishes and widths
upon request. Rail Specifications, Templates and Hardware Packages
are available from us . Call (888) 663-9830, Ext. 777 for
information, or e-mail us at .
* Comes standard with Jamb Alignment Block. Arms and Pivots must be
ordered separately to meet job requirements.
