Product Details:

For Use With 3/8" and 1/2" (10 and 12 mm) Glass
1" (25 mm) Diameter Stainless Steel or Brass Tubing
Available in Several Architectural Finishes

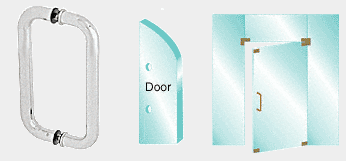

This CRL Glass Mounted Standard Pull Handle is available in three sizes and in many different architectural finishes.

Color: Satin Anodized

Minimum Order: 1 Each

Additional Product Information:
Includes:
One Set CM10X10 Pull Handles (back-to-back mounting)
Two Each Through Bolts for Glass Mounting
Four Each 1-1/4 Inch (32 millimeter) Diameter Matching Finish Metal Washers and Gaskets

For Use With:
3/8 Inch (10 millimeter) Glass
1/2 Inch (12 millimeter) Glass

Construction:
One Inch (25 millimeter) Diameter Stainless Steel or Brass Tubing

Glass Fabrication Required:
Two 5/8 Inch (16 millimeter) Diameter Holes
CM10X10 10 Inches (254 millimeters) Center-to-Center

For the thicker doors, please, use TB4CH bolt, which permits mounting of pulls to 1-3/4" (44.5 mm) thick, and in majority cases even up to 2" thick, aluminum, wood or hollow metal doors.
