Category: CRL DL950 Series Push Pad Rim Panic Exit Device

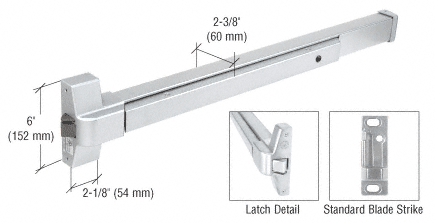

CRL Satin Aluminum Finish Touch Bar Rim Panic Exit Device
SKU: DL950A
UPC:
$182.76
(20% off)
$152.30
Product Details:
For Use With Wood, Metal or Narrow, Medium and Wide Stile
Aluminum Doors
Painted Carbon Steel and Satin Stainless Steel Finishes
Available
Minimum Force Releases Locking Mechanism
U.L. Listed
Non-Handed and Reversible
The CRL Pushpad Rim Panic Device can be used in a
wide range of applications since they are designed to fit even
narrow stile doors. Installation can be made on single or double
doors when used with a mullion.
A blade strike is Included with each Exit Device.
Color: Satin Aluminum
Minimum Order: 1 Each
Additional Product Information:
This device can be installed on doors as narrow as 30 inches (762
millimeters) by simply cutting the Exit Device body and replacing
the inactive end cover. An optional keyed rim cylinder DL911SCKDA
can be used for all doors (except narrow stile types, due to the
size limitation). For enhanced security the device is supplied with
a 3/4 inch (19 millimeter) throw dead latch and strengthened Blade
Type Strike. "Dogging", locking the Device in the open
position, is easy with the supplied dogging wrench.
If a handle is needed, please see the
CRL Paddle Handles and Lever Handles.
Important Note:
This Panic Exit Device is fabricated with a 34-7/8 inch overall
length so they are ready to install on 36 inch doors without
modification. 36 inch width is the maximum door size.
