Product Details:
Requires Cutting Instructions.
Call toll free for shipping quote. 216-663-9830
The Most Popular Retrofit Storm Window System
Better Than Magnetic, Sturdier Than Vinyl

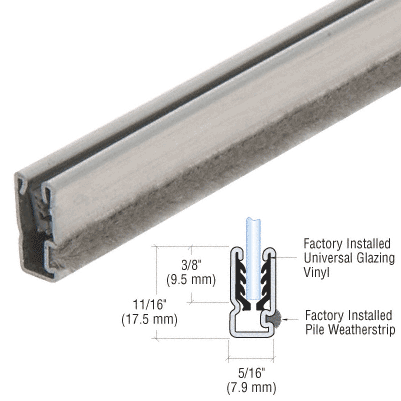

CRL-Sash Universal Storm Window
Frame is the quality made, all-in-one glass framing
material for the fabrication of secure, high-performance storm
window and door panels. The frame accepts single or double strength
glass or acrylic up to 1/8 inch (3 millimeters) thick, which makes
it perfect for interior or exterior recessed or surface mounted
panels. Pre-installed vinyl gasket holds the glass or acrylic,
eliminating the need for messy adhesives used with most other types
of storm window frames. Built-in pile weatherstripping helps
eliminate air infiltration between the secured panel and the window
frame. A roll-formed aluminum body gives the frame rigidity while
allowing the panel to remain lightweight enough to install and
remove seasonally.
Color: Mill
Length: 12 ft-2in (3.7 m)
Minimum Order: 1 Stock Length
Additional Product Information:
Two Ways to Fabricate
Miter Cut Fabrication
Miter cut fabrication is accomplished by miter cutting the frame to
the desired width and height. Next insert Cat. No. 1795 Corners and
wrap the frame around the glass or acrylic panel. Then use Cat. No.
S1936 Tool to crimp the frame onto the dimples in the corners to
provide a tight fit.
Square Cut Fabrication
Square cut fabrication is accomplished by simply square cutting the
frame 1-7/16 inches (36.5 millimeters) less than the desired width
and height of the frame. Next insert the Square Sash Corners, wrap
the frame around the glass or acrylic panel and the fabrication is
complete.
