Product Details:
- Extruded Saddle Is Reversible to Match 1/4" (6 mm) and
3/4" (19 mm) Door Clearances
- RED-E to Ship Models From CRL Inventory
- Provides Even Sightline With Our Door
Rails
- Vinyl Provided to Use With 1/2" (12 mm) Glass; Vinyl
for 3/8" (10 mm) Glass Ordered Separately
|

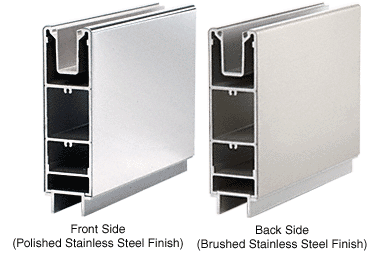

CRL 6" Square Sidelite Rails match the
profile of our 6" Square Door Rails, thus leaving an even
sightline. They match floor mounted and 1/2 inch (12.7 millimeter)
threshold doors using our Reversible Saddle. Use the Sidelite Rails
alone as upper rails, and with our Aluminum and Neoprene Setting
Blocks,lifting the glass into the upper rail and lowering itinto
the bottom rail. This allows 9/16 inch (14.3 millimeter) retention
in both top and bottom channels. Roll-In Glazing Gasket for 1/2
inch (12 millimeter) glass is included. Both 3/8 inch
(10 millimeter) Roll-In Glazing Gasket and End Caps are sold
separately.
- Length of Sample: 9 in (229 mm)
