Product Details:
Heavy-Duty Stainless Steel Handle
Fast Attachment on Smooth, Nonporous Flat Surfaces
Tough ABS Plunger With Red-Line Indicator
Full Pad Face Contact When Pumped Reduces Distortion
Can Be Re-Pumped Without Losing Remaining Vacuum
Wide Release Valve Lever With Safety Guard Permits Quick and
Complete Release

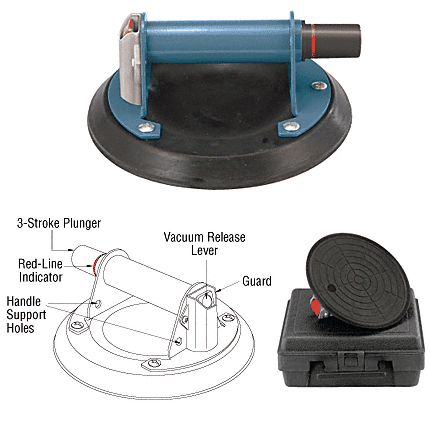

CRL has developed the S7950 8" (203 mm) Pump-Action
Vacuum Lifter with the strength of a heavy-duty stainless
steel handle and a tough ABS 3-stroke Plunger Pump for extra-fast
attachment to glass and other non porous surfaces. The Plunger uses
a red-line indicator to let you know that you have sufficient
vacuum to lift your load. Should the red-line appear after pumping,
a built-in check valve allows you to re-pump without vacuum
loss.
Pad Area: Over 50 Square Inches
Additional Product Information:
The large rubber pad area of over 50 square inches (323 square
centimeters) makes full face contact when the Lifter is pumped, and
allows attachment to glass of varying thickness with very little
risk of damage.
To release the S7950 Lifter from the surface, simply press the
vacuum release lever (which is protected by a guard during use) and
the pad detaches from the surface without any residual sticking.
Four 5/16" (7.9 mm) diameter holes in the handle are
convenient locations to attach guide ropes when using these Vacuum
Lifters mounted on one of CRL Manual Lifting Frames, as well as for
other utility attachments.
Important Notes:
Lifting Capacity 125 lb. (57 kg)
