CRL Ringed Anchor Fitting for Cable Display System
C.R. Laurence CRL Ringed Anchor Fitting for Cable Display System | CB78
Category: CRL Cable Display System Components for up 3/8 in
CRL Ringed Anchor Fitting for Cable Display System
SKU: CB78
UPC:

$24.00 (20% off)

$20.00

Product Details:

Designed to be Installed in Concrete Walls or Ceiling

Easily Installed



The CRL Ringed Anchor Fitting for the Cable Display System is inserted into a drilled hole and gently hammered into position which will expand the anchor end locking it into the cement wall. Use with the CB118 Cable Loop Securing Clamp or the CB116 Cable Turnbuckle. The 2mm Stainless Steel Cable is then attached to the Ringed Anchor Fitting with the Cable Loop Securing Clamp.

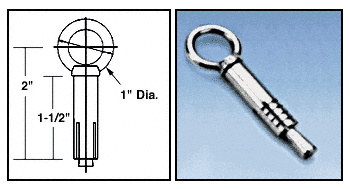

Color:                Nickel Plated

Barrel Length:  1-1/2 in (38mm)

Ring Diameter: 1 in (25mm)



Important Note:

WEIGHT LIMITATIONS: When properly installed, each column (4 cables) can bear a total weight of up to 80 lbs. (36kg.).

Each shelf can bear a total weight of 20 lbs. (9kg.), when used with CB74, CB76 and CB78 Ceiling Mount Fittings.

If CB112 and CB114 Hanger Pipe Base Fittings are properly anchored and used as ceiling attachments, each column (4 cables) can bear a total weight of 40 lbs. (18kg.).
