Category: CRL Regal Series Glass-to-Glass Mount Hinges

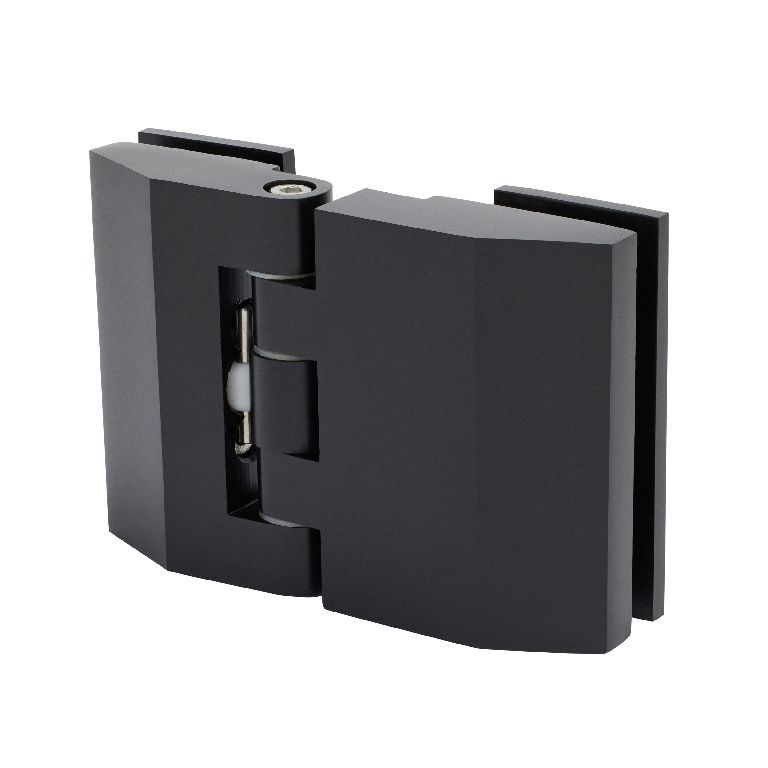

CRL Regal 180 Series Oil Rub Bronze Glass-to-Glass Hinge
SKU: REG1800RB
UPC:
$235.18
(20% off)
$195.98
Product Details:

Adjustable After Door is Installed
Available in Several Beautiful Finishes
Use Monolithic Tempered Glass
The CRL Regal Series of professional hinges is
able to accommodate 5/16 to 3/8 inch (8 to 10 millimeter) tempered
safety glass. A variety of two styles, including Wall Mount and
Glass-to-Glass types, gives design flexibility. New Regal Series
Adjustable Shower Door Hinges offer the best of all worlds. This
hinge provides an attractive and safe installation for your
customer. At the same time, your glass fabrication costs are
greatly reduced. The Wall Mount model requires only two holes in
the glass (no cut-out). The Glass-to-Glass Model only requires four
holes per hinge (two in the door and two in the fixed panel).
Flexibility during installation is another valued feature of the
Regal Hinge. It offers an adjustable closing angle from 0° to 90°.
After the door is installed, simply loosen the Allen screw. You
have now solved the problem of walls not meeting the door at the
perfect 90° angle. This adjustment feature means that a single
Glass-to-Glass model can accommodate angles from 90° to 180°. No
more costly inventory of 90°, 135° and 180° hinges. The Regal is
constructed of solid brass, and comes in many popular stock
finishes to match most modern bathroom decors. The Regal Series is
backed by our standard three year limited warranty. Note: A
strike jamb should always be used with this hinge.
Color: Oil Rub Bronze
Minimum Order: 1 Each
Additional Product Information:
Specifications:
Glass Thickness: 5/16 to 3/8 inches (8 to 10 millimeter) Tempered
Safety Glass
Construction: Solid Brass
Hinge Swings: Approximately 90 degrees Outward
Only
Closing Type: Self-Centering when within 15º of closed position
Glass Fabrication: Wall Mount - Two holes (on cut-out);
Glass-to-Glass - Four holes (two in door, two in fixed panel)
Includes: One Hinge, Gaskets, Screws and Template
