Product Details:

Adjustable After Door is Installed
Available in Several Beautiful Finishes
Use Monolithic Tempered Glass

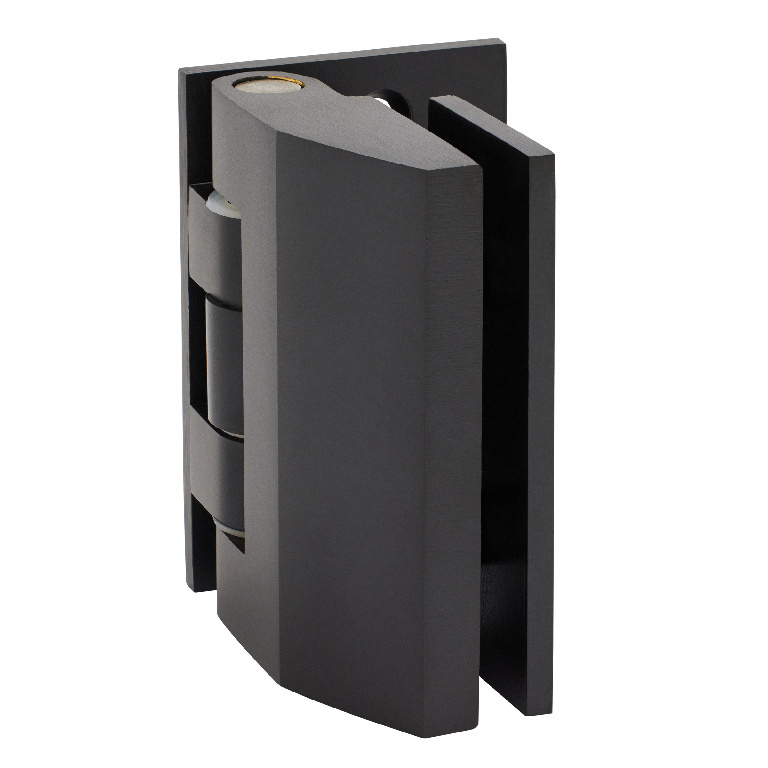

The CRL Regal Series of professional hinges is able to accommodate 5/16 to 3/8 inch (8 to 10 millimeter) tempered safety glass. A variety of two styles, including Wall Mount and Glass-to-Glass types, gives design flexibility. New Regal Series Adjustable Shower Door Hinges offer the best of all worlds. This hinge provides an attractive and safe installation for your customer. At the same time, your glass fabrication costs are greatly reduced. The Wall Mount model requires only two holes in the glass (no cut-out). The Glass-to-Glass Model only requires four holes per hinge (two in the door and two in the fixed panel). Flexibility during installation is another valued feature of the Regal Hinge. It offers an adjustable closing angle from 0° to 90°. After the door is installed, simply loosen the Allen screw. You have now solved the problem of walls not meeting the door at the perfect 90° angle. This adjustment feature means that a single Glass-to-Glass model can accommodate angles from 90° to 180°. No more costly inventory of 90°, 135° and 180° hinges. The Regal is constructed of solid brass, and comes in many popular stock finishes to match most modern bathroom decors. The Regal Series is backed by our standard three year limited warranty. Note: A strike jamb should always be used with this hinge.

Color: Oil Rub Bronze

Minimum Order: 1 Each

 Additional Product Information:
Specifications:
Glass Thickness: 5/16 to 3/8 inches (8 to 10 millimeter) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Approximately 90 degrees Outward
Only
Closing Type: Self-Centering when within 15º of closed position
Glass Fabrication: Wall Mount - Two holes (on cut-out); Glass-to-Glass - Four holes (two in door, two in fixed panel)
Includes: One Hinge, Gaskets, Screws and Template
