CRL Production Diamond Glass Drilling Machine / REPLACED BY CRL2
C.R. Laurence CRL Production Diamond Glass Drilling Machine / REPLACED BY CRL2 | AMZ1
Category: Glass Drilling Machines
CRL Production Diamond Glass Drilling Machine / REPLACED BY CRL2
SKU: AMZ1
UPC:

$4,597.44 (20% off)

$3,831.20

Product Details:

  • Precise Twin Post Design with Built-In Water Coolant Chuck Drills Faster and More Precisely Than Any Other Portable Drilling Machine
  • Accepts 1/8" Through 4" (3 mm Through 102 mm) Belgian Thread Diamond Drills
  • Variable Speed Control, High Torque DC Motor; Built-In Coolant Chuck; Locking Vacuum Cup Base

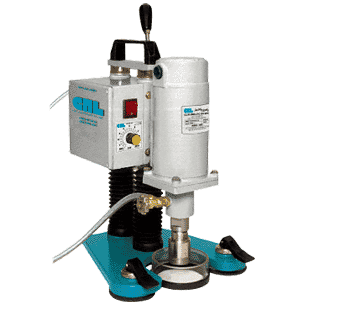

The CRL AMZ1 Production Diamond Drilling Machine drills 1/8 inch to 4 inch (3 millimeters - 102 millimeters) holes faster and more precisely than any other portable glass drilling machine. In comparison to other machines on the market, drilling a 2 inch hole in 1/4 inch mirror can be done in less than ten seconds while using a properly dressed drill bit (tests done under controlled conditions). AMZ1 Features:

  • Advanced electric circuitry
  • A powerful DC motor with a variable electric speed control that provides full torque at all speeds ranging from 0 to 2900 RPM
  • Twin vertical guide posts
  • A dual locking vacuum cup base keeps the machine steady while drilling.

    Standard Accessories:
  • 12 foot heavy-duty power cord
  • Externally serviceable motor, brushes and fuse
  • Coolant retaining ring
  • Coolant chuck with supply hose
  • Built-in handle for easy carrying
  • Wrenches
  • Complete operation manual.

    The CRL AMZ1 ships already set up for use with 110 Volt power and includes a grounded plug (for use with a G.F.C.I.).

    The CRL AMZ1 is also loaded with popular features, and durable enough to give you years of dependable service. Make the move up from steel and brass tube drills, and their messy silicon carbide slurry, to the technically advanced Belgian Mount Multi-Layer Metal Bond Drills with the CRL AMZ1.

    (
    Items most commonly used with the AMZ1 are the Belgian Mount PDT Series (metal bond) and HBT Series (Electro-Formed) Diamond Drills.

  • Always use a Ground Fault Circuit Interrupt, such as Cat. No. GF1, when operating wet glass working machinery to avoid electric shock.
