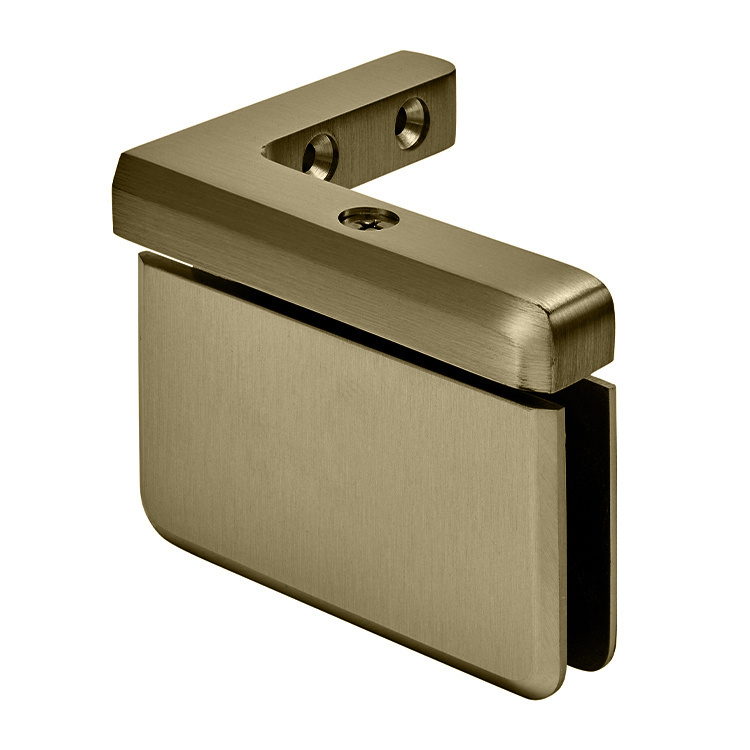

CRL Prima Series 05 Brushed Bronze Left Hand Offset Mount Hinge
CRL Prima Series 05 Brushed Bronze Left Hand Offset Mount Hinge | PPH05LBBRZ
Category: CRL Prima 05 Left Hand Wall Mount Offset Hinge
CRL Prima Series 05 Brushed Bronze Left Hand Offset Mount Hinge
SKU: PPH05LBBRZ
UPC:

$218.74 (20% off)

$182.28

Product Details:

Self-Centering with Optional 5º Pivot Pin Set
Available in Many Beautiful Finishes
3 Year Warranty

The CRL Prima Series of professional hinges is able to accommodate 5/16 to 3/8 inch (8 to 10 millimeter) tempered safety glass. A variety of four styles, including Wall Mount and Glass-to-Glass types, gives design flexibility. They are made of solid brass with all moving parts (pins and springs) in stainless steel. Prima Hinges are self-centering, with four springs for maximum retention strength. Optional 5º Pivot Pin Sets are available to accommodate "off angle" installations.

Color:  Brushed Bronze

Minimum Order: 1 Each

Additional Product Information:
This new Offset Bracket Wall Mount Pivot Hinge is ideal for frameless shower doors that do not reach the ceiling, but will be using the top and bottom pivot style hinges. The Offset Bracket Wall Mount Hinge is used at the top of the door, and the standard PPH01 Hinge is used at the bottom of the door.

The Offset Bracket is directed to the inside of the shower enclosure, thus providing a clean sight line from the shower exterior. Left Hand or Right Hand models are defined by viewing from "outside" of the shower enclosure (the PPH01 Hinge used at the bottom is universal).

Optional 5° Pivot Pin Set: Optional 5° Pivot Pin Sets (Cat. No. P1VP1N) are available when you want to alter the closing position of the door by 5° to accommodate "off-angle" installations. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set of two, one for the top and one for the bottom. Not included with hinge purchase.

Specifications:
Glass Thickness: 5/16 to 3/8 inch (8 to 10 millimeter) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
