Product Details:



Pre-Set 5° Pin for Tighter Door Closure
Available in Several Beautiful Finishes
3 Year Warranty

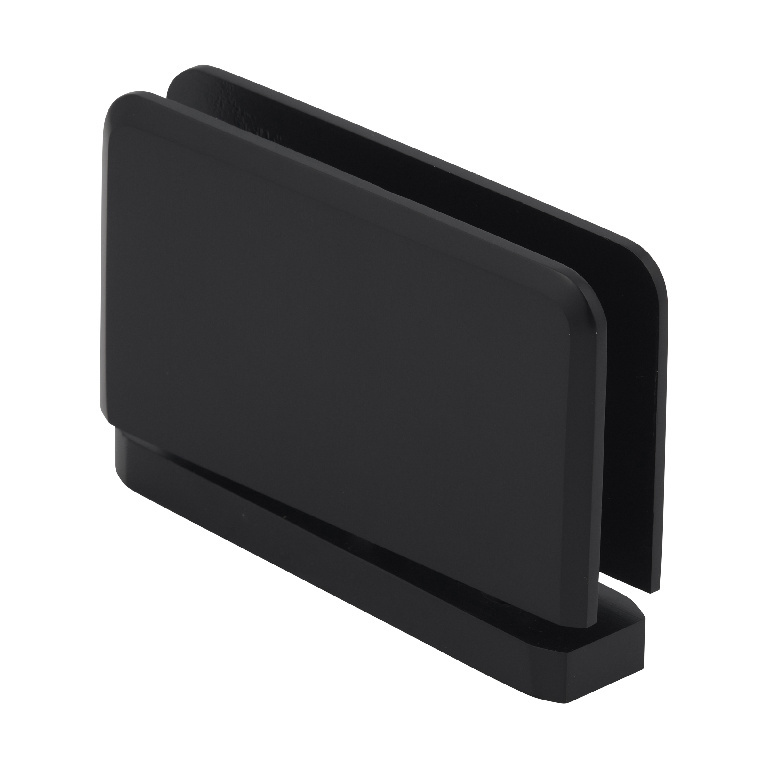

The CRL Prima #2 Pin Series of professional hinges is able to accommodate 5/16 to 3/8 inch (8 to 10 millimeter) tempered safety glass. They are made of solid brass with all moving parts (pins and springs) in stainless steel. Prima Hinges are self-centering, with four springs for maximum retention strength. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Prima Series is adaptable to CRL's Deluxe Header System for shower enclosures not extending to full ceiling height.

Color: Oil Rub Bronze

Minimum Order: 1 Each

Additional Product Information:
CRL's 5° Pivot Pin Set: CRL's 5° Pivot Pin (Cat. No. P1VP1N) is installed to alter the closing position of the door by 5° and insure a tighter door closure into the shower area. The Prima #2 Hinge is used with CRL's Prima #1 Pin Hinge to provide consistent top and bottom mount closing capability.

Specifications:
Glass Thickness: 5/16 to 3/8 inch (8 to 10 millimeter) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
