Product Details:



Self-Centering with Optional 5º Pivot Pin Set
Available in Several Beautiful Finishes
Use Monolithic Tempered Glass

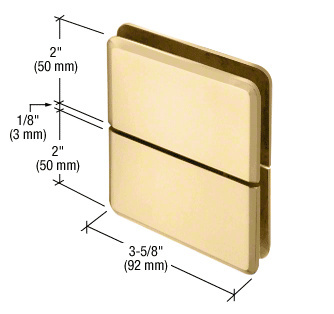

The CRL Prima Series of professional hinges is able to accommodate 5/16 to 3/8 inch (8 to 10 millimeter) tempered safety glass. A variety of four styles, including Wall Mount and Glass-to-Glass types, gives design flexibility. They are made of solid brass with all moving parts (pins and springs) in stainless steel. Prima Hinges are self-centering, with four springs for maximum retention strength. Optional 5º Pivot Pin Sets are available to accommodate "off angle" installations. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Prima Series is adaptable to CRL's Deluxe Header System for shower enclosures not extending to full ceiling height.

Color: Satin Brass

Minimum Order: 1 Each

Additional Product Information:
Optional 5° Pivot Pin Set: Optional 5° Pivot Pin Sets (Cat. No. P1VP1N) are available when you want to alter the closing position of the door by 5° to accommodate "off-angle" installations. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set of two, one for the top and one for the bottom. Not included with hinge purchase.

Specifications:
Glass Thickness: 5/16 to 3/8 inch (8 to 10 millimeter) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
