Adjustable Spring Power Size 2 - 5

Applicable for Doors Weighing 66 to 264 lbs (30 to 120 kg)

Door Closers Cross Reference Chart

Door Closers Data

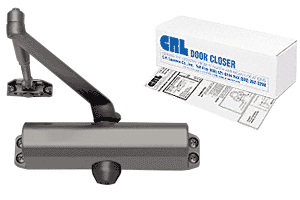

The CRL PR80 Adjustable Spring Power Surface Mount Door Closer  is the perfect closer replacement for your single size closer inventory.

This compact closer matches the common industry 9-1/16 x 3/4 inch (230 x 19 millimeter) hole template, making it ideal for both new and retrofit applications.

The closer will adjust from a Size 2 through 5 to accommodate doors up to 264 pounds (120 kilograms).

Closing and latching speed controls are independently adjustable and the adjustable back check feature helps prevent damage to the closer, door, and adjacent surface when the door is violently swung open due to wind or heavy pedestrian traffic.

Color:                                Bronze

Closer Body Length:       9-3/4 in (247 mm)
Horizontal Mounting Holes: 9-1/16 in (230 mm) Center to Center
Vertical Mounting Holes:     3/4 in (19 mm) Center to Center

A Parallel Arm Bracket and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications.

Optional accessories, such as Drop Plates and Hold Open Arms, are available for special installations.
