Adjustable Multi-Size 2 - 6 with Delayed Action
Applicable for Doors Weighing 66 to 330 lbs (30 to 150 kg)

Door Closers Cross Reference Chart

Door Closers Data

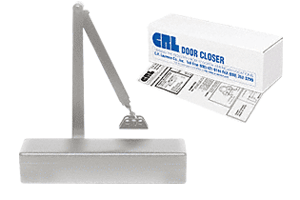

The CRL PR76 Delayed Action Adjustable Spring Power Surface Mount Door Closer features an adjustable delayed action function that can vary the time a door will remain open to facilitate ease of progress through the opening. This feature is particularly valuable in facilities and public buildings that require door closers to momentarily stay open. This closer is suitable for use with doors weighing up to 330 pounds (150 kilograms). Closing and latching speed controls are independently adjustable and an adjustable back check feature helps prevent damage to the closer, door, and adjacent surface when the door is violently swung open due to wind or heavy pedestrian traffic

Color: Aluminum

Closer Body Length: 11-23/32 in (298 mm)
Horizontal Mounting Holes: 11-3/32 in (282 mm) Center to Center
Vertical Mounting Holes: 3/4 in (19 mm) Center to Center


Additional Product Information:
A Parallel Arm Bracket and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications.

Optional accessories including Drop Plates and Hold Open Arms are available for special installations.
