ANSI A156.4 - Grade 1
Adjustable Spring Power Size 2 - 5
Delayed Action Closing for the Disabled

Door Closers Cross Reference Chart

Door Closers Data

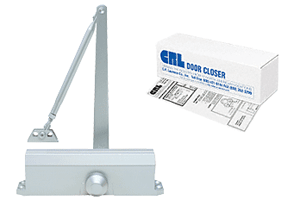

When demanding closer specifications are required, consider CRL PR44DA ANSI Grade 1 Adjustable Spring Power Multi-Size Delayed Action Surface Mounted Door Closer. This versatile closer provides an adjustable range from Size 2 through 5 for exceptional performance and door control. Closing and latching speed controls are independently adjustable, and adjustable back check is standard on each closer. The Delayed Action feature adjusts the time a door will remain open to facilitate ease of progress through the opening. This feature is particularly valuable in health care facilities, such as hospitals and nursing homes, and public buildings that require door closers to momentarily stay open to comply with A.D.A. regulations.

Color:                                Aluminum

Closer Body Length:           9-3/4 in (248 mm)

Horizontal Mounting Holes:  9-1/16 in (230 mm) Center to Center

Vertical Mounting Holes:     3/4 in (19 mm) Center to Center

Additional Product Information:

The CRL PR40 Series has a compact design and shares the common 9-1/16 x 3/4 inch (230.2 x 19 millimeter) mounting hole template, making it ideal for both new and retrofit applications.

A Parallel Arm Bracket and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications.

Optional accessories, such as Drop Plates and Hold Open Arms, are available for special installations.
