Product Details:
- Ideal for Balconies That Require Clearance Under the
Bottom Rail for Drainage
- 6063 Aluminum Alloy T5 Temper
- Custom Drilling and Fabrication Available
- Seven Standard Powder Coated Finishes; Custom Colors
Also Available
- Pre-Drilled Slotted Holes 12" on Center for Easy
Installation
|

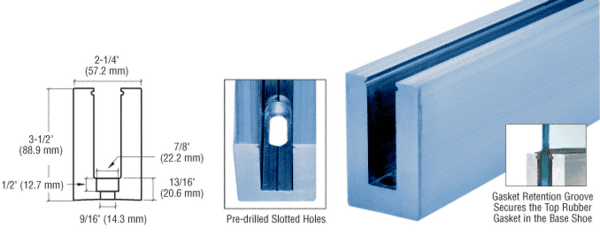

CRL’s EGR Elevated Glass Railing Base
Shoe is used as the base channel for elevated 1/2
inch (12 millimeter) tempered glass balusters utilizing the Wet
Glaze Method of installing the glass. It is perched atop our EGR
Stanchions to allow for drainage of water and debris, so critical
in high-rise and other commercial applications. Installation to the
Stanchions is by Stainless Steel Socket Head Cap Screw Fasteners
through 12 inch (305 millimeter) on center pre-drilled and slotted
holes in the Base Shoe, after the Stanchions have been set in the
concrete substrate. CRL offers Elevated Glass Railing Base Shoe in
mill finish or powder coated with one of our seven standard colors.
If your project requires a custom color, our manufacturing facility
can offer over 250 quick turn custom color options, with the
ability to color match as well. Custom drilling and fabrication of
the Base Shoe is also available on special order. Contact us for
details or a quote.
