CRL Polished Stainless Sidelite Mounted Transom Curved Patch
C.R. Laurence CRL Polished Stainless Sidelite Mounted Transom Curved Patch | CPF40PS
Category: CRL Sidelite Transom Patch Hardware
CRL Polished Stainless Sidelite Mounted Transom Curved Patch
SKU: CPF40PS
UPC:

$125.04 (20% off)

$104.20

Product Details:

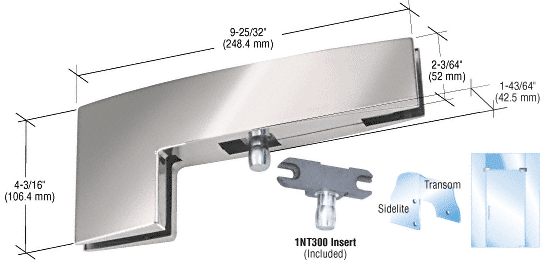

Works With 2-11/16" (68 mm) Pivot Setback Door Patch Fittings
For 3/8" or 1/2" (10 or 12 mm) Glass

The Sidelite Mounted Transom Curved Patch is used to support a transom from a sidelite glass panel. It comes with a 1NT300 Top Insert for door mounting. On the non-hinged side the Insert can be removed, allowing for a double swinging door. A 1NT306 Transom Patch Door Stop Insert can be used to create a one way door.


Color: Polished Stainless Steel

Length: 9-25/32 in. (248.4 mm)
Height: 4-3/16 in. 106.4 mm)

Minimum Order: 1 Each


Additional Product Information:
GLASS FABRICATION REQUIRED: Three 3/4 inch (19 millimeter) Diameter Holes and Corner Notch.
