CRL Polished Stainless Right Hand Reverse Rail Mount Keyed Access "B" Exterior Top Securing Deadbolt Handle
C.R. Laurence CRL Polished Stainless Right Hand Reverse Rail Mount Keyed Access "B" Exterior Top Securing Deadbolt Handle | DB100B3RKPS
Category: DB100 Series Rail Mount Handles
CRL Polished Stainless Right Hand Reverse Rail Mount Keyed Access "B" Exterior Top Securing Deadbolt Handle
SKU: DB100B3RKPS
UPC:

Product Details:

  • For 1/2" or 3/4" (12 or 19 mm) Tempered Glass Doors
  • Custom Sizes Ship Within One to Two Weeks
  • Available with a Wide Selection of Exterior Fixed Pull Handles on Special Order
  • Certification: ANSI/BHMA A156.16 Grade 1

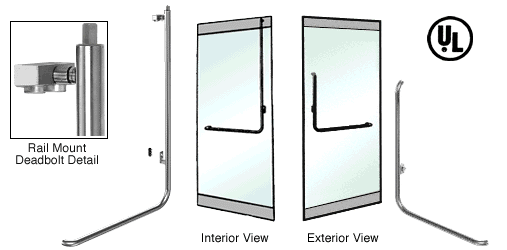

This CRL Glass Door Deadbolt Handle is designed to allow maximum view and a contemporary look to 1/2 or 3/4 inch (12 or 19 millimeter) tempered glass doors. Installations can be made on single or double doors. For your convenience, we have designed the handles so they are ready to install on 36 to 48 inch (914 to 1219 millimeter) wide doors ranging in height from 90 to 102 inches (2286 to 2591 millimeters) high without modifications. Keyed Lock standard on interior and exterior side of handle. Optional thumbturn to replace keyed lock. Custom Headers available with your choice of pre-installed hardware. Dustproof Strike available for doors secured at bottom. SPECIFICATIONS
Material:

  • 1-1/4 Inch (32 millimeter) Diameter Brass or Stainless Steel Tubing (1.5 millimeters thick)
    Glass Thickness:
  • 1/2 or 3/4 Inch (12 or 19 millimeter)
    Glass Fabrication: Varies
  • Please contact us at

    ORDERING OPTIONS
    When ordering Deadbolt Handles you must specify:
  • DB100, DB110 or other Interior Handle Series shown on page DC27 in the DC04 catalog
  • Exterior Handle Option (page DC29 click here)
  • Right or Left Hand (as viewed from the outside)
  • Rail Mount (for doors with full length rails) or Glass Mount (for doors with patch rails)
  • Single or Double Door Strike (for single acting doors)
  • Brushed or Polished Stainless, Satin or Polished Brass Finish

    Contact us for specification details and pricing on these handles for "All Glass" Entrance Doors. Please call (888) 663-9830, or by e-mail.
