Product Details:
- Four-Roller Units Silently Move the Door
Rails
- Provides a Flush Bottom Surface
- Available in Three Configurations and Several
Finishes
|

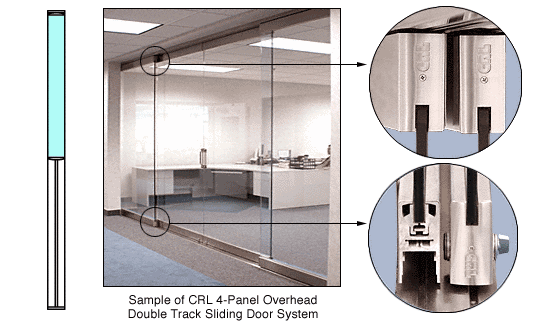

The CRL Overhead Track Sliding and Bi-Fold Door
System was designed to work in a variety of different
installations. A Universal design allows it to be used as a bi-fold
system in full leaf or half leaf styles. The top rollers are easily
adjustable for height and allignment. The overhead track and the
door rails are the same width to provide a matching sight line.
Pile weatherstrip between the overhead track and door rail conceals
the gap. Securing the bottom door rails can be accomplished two
different ways: with a guide that slides in a channel mounted in
the floor, in a dust proof keeper in the floor using a slide bolt
or keyed lock. The narrow bottom guide channel has only a 1/4 inch
(6.4 millimeter) wide opening, narrow enough so high heels won't
get caught, yet wide enough to be easily cleaned. Any of our
attractive architectural finishes will provide aesthetics and
longevity on the job. Because all units will be custom made to
match your customers requirements, catalog number represent each
style and finish. All other necessary information will be required
when quoting. Contact us by phone Toll-Free (888) 663-9830
Extension 7700, .
NOTE: Typical uses include stadium luxury boxes, conference rooms,
display cases, large entry doors, and "open air" rooms.
- Color: Polished Stainless
