Product Details:

For 3/8" or 1/2" (10 or 12 mm) Glass
Allows for 180 Degree Door Swing
Also Works With CRL 3/4" (19 mm) Offset Arm Bottom Door Rails With No Alterations

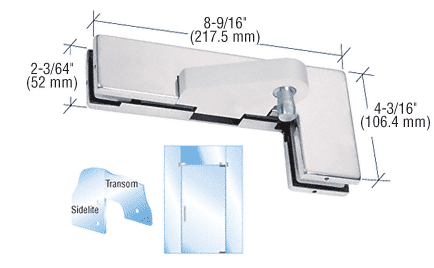

The CRL Sidelite Mounted Transom Offset Patch Fitting is specifically designed to work with CRL Offset Arm Bottom Door Rails, with no alterations required. It will also work with other Offset Patch Fittings. Allowing for a full 180º door swing, these Fittings are available for right or left hand configurations, in your choice of brushed or polished stainless steel. Glass fabrication templates are included in the box.


Color: Polished Stainless
Glass Thickness: 3/8 or 1/2 in (10 or 12 mm)
Hand: LH
Minimum Order: 1 Each

Additional Product Information:
INCLUDES:
-High Density Cast Body
-Cover Plates (Finish of Your Choice)
-Gasket for 3/8 in (10 mm) or 1/2 in (12 mm) Glass
-Template and Instructions
SPECIFICATIONS:
For Use With:
-0PF20R and 0PF20L - Top Door Patches
Glass Fabrication Required:
-One 3/4 in (19 mm) Diameter Hole and Corner Notch
