Product Details:

European 2-9/16" (65 mm) Pivot Setback
High Density Cast Body
Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass

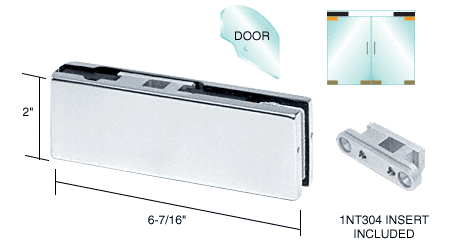

The CRL Top Door Patch Fitting includes the 1NT304 Insert for use with our Overhead Concealed Door Closers that have a 9/16 inch (14 millimeter) square and 3/4 inch (19 millimeter) long spindle. Finished covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8 or 1/2 inch (10 or 12 millimeter) Glass.


Color: Polished Stainless

Minimum Order: 1 Each

Additional Product Information:
Glass Fabrication Required: One 3/4 inch (19 millimeter) diameter hole and corner notch.
Important Note:
THE FOLLOWING GUIDELINES ARE TO BE USED WHEN MAKING A DOOR USING THIS HARDWARE:
MAXIMUM HEIGHT: 108" (2744MM)
MAXIMUM WEIGHT: 176 LBS (80KG)
MAXIMUM WIDTH: 43" (1100MM)
IF THE DOOR EXCEEDS ANY OF THESE LIMITATIONS FULL DOOR RAILS SHOULD BE USED.
