Category: CRL Top Door Patch Fitting with Insert No. 1NT303

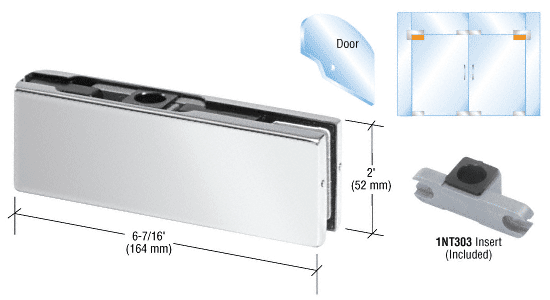

CRL Polished Stainless Finish Top Door Patch Fitting with INT303 Insert
SKU: PH21APS
UPC:
Product Details:

European 2-9/16" (65 mm) Pivot Setback
High Density Cast Body
Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
The CRL Top Door Patch Fitting includes the 1NT303
Insert for use with our CRL9040WBP Top Walking Beam Pivot, 1NT401
Surface Mount Top Pivot, 1NT405 Threaded Top Pivot, or other 19/32
inch (15 millimeter) Diameter type pivots. Finished covers are
available in four standard finishes. Gaskets are supplied that
allow this Patch Fitting to be used with either 3/8 or 1/2 inch (10
or 12 millimeter) Glass.
Color: Polished Stainless
Minimum Order: 1 Each
Additional Product Information:
Glass Fabrication Required: One 3/4 inch (19 millimeter) diameter
hole and corner notch.
Important Note:
THE FOLLOWING GUIDELINES ARE TO BE USED WHEN MAKING A DOOR USING
THIS HARDWARE:
MAXIMUM HEIGHT: 108" (2744MM)
MAXIMUM WEIGHT: 176 LBS (80KG)
MAXIMUM WIDTH: 43" (1100MM)
IF THE DOOR EXCEEDS ANY OF THESE LIMITATIONS FULL DOOR RAILS SHOULD
BE USED.
