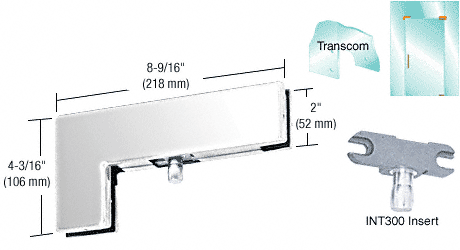

CRL Polished Stainless Finish Sidelite Transom Patch With INT300 Insert
C.R. Laurence CRL Polished Stainless Finish Sidelite Transom Patch With INT300 Insert | PH40PS
Category: Sidelite Mount Transom Patch with 1NT300 Insert
CRL Polished Stainless Finish Sidelite Transom Patch With INT300 Insert
SKU: PH40PS
UPC:

$126.00 (20% off)

$105.00

Product Details:

For 3/8" or 1/2" (10 or 12 mm) Glass

The CRL Sidelite Mounted Transom Patch is used to support a transom from a sidelite glass panel. It comes with a INT300 Insert for mounting a door with the CRL PH20A or PH21A Top Door Patch Fitting. The Insert can also be moved on the non-hinged side, allowing for a double swing door. A INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a INT305 Transom Patch Keeper Insert can be installed for use with an AMR205 Lock when used for top of the door installation.


Color: Polished Stainless
Minimum Order: 1 Each

Additional Product Information:
Glass Fabrication Required: One 3/4 inch (19 millimeter) Diameter Hole and Corner Notch.
Important Note:
If the weight of the transom exceeds 100 pounds (45.4 kilograms) the transom must be supported from the ceiling. This is to prevent the Patches from slipping from too much weight.
