Category: CRL Top Door Patch Fitting with Insert No. 1NT303
CRL Polished Stainless Finish Curved Top Door Patch Fitting with INT303 Insert
SKU: CPF20APS
UPC:
Product Details:
Curved Body
North American 2-11/16" (68 mm) Pivot Setback
Gaskets for use with 3/8" or 1/2" (10 or 12 mm)
Glass

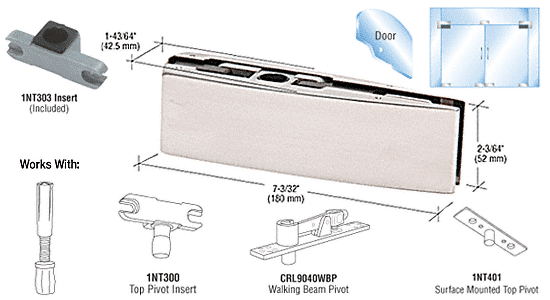

The CRL Top Door Patch Fitting includes the 1NT303 Insert for
use with our CRL9040WBP Top Walking Beam Pivot, 1NT401 Surface
Mount Top Pivot, 1NT405 Threaded Top Pivot, or other 19/32 inch (15
millimeter) Diameter type pivots. Finished covers are available in
five standard finishes. Gaskets are supplied that allow this Patch
Fitting to be used with either 3/8 or 1/2 inch (10 or 12
millimeter) Glass.
Color: Polished Stainless
Minimum Order: 1 Each
Glass Fabrication Required:
One 3/4 inch (19 millimeter) diameter hole and corner notch.
